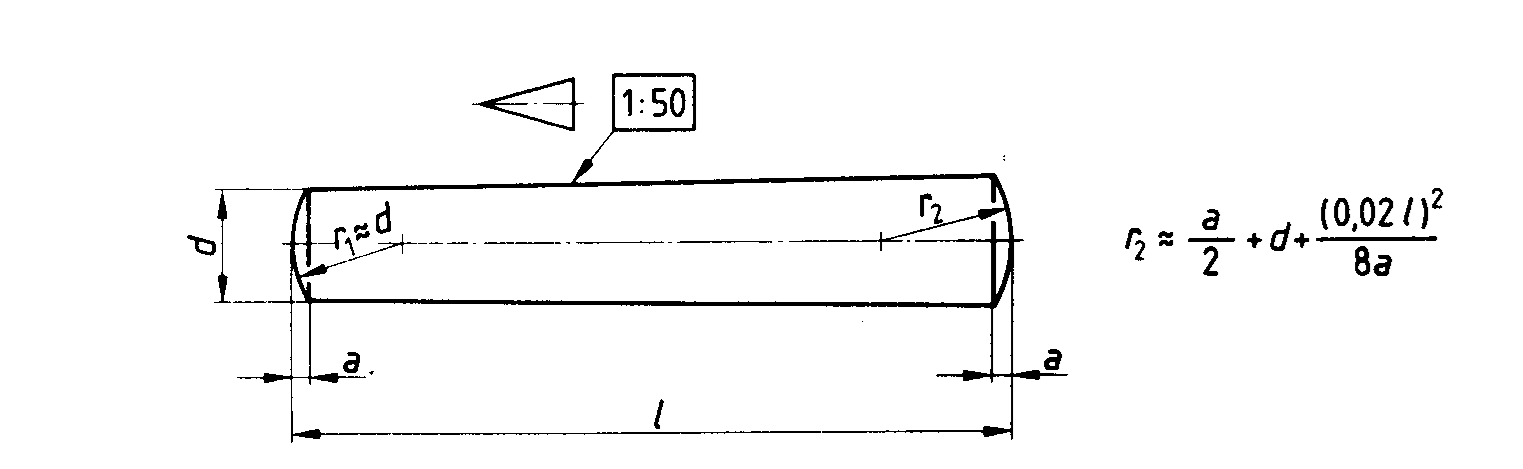

ISO 2339 Pins

ISO 2339

Dimensions in Millimetres

d h101 0.6 0.8 1 1.2 1.5 2 2.5 3 4 5 6 8 10 12 16 20 25 30 40 50
a = 0.08 0.1 0.12 0.16 0.2 0.25 0.3 0.4 0.5 0.63 0.8 1 1.2 1.6 2 2.5 3 4 5 6.3
l2)
nom. min. max.
2 1.75 2.25
3 2.75 3.25
4 3.75 4.25
5 4.75 5.25
6 5.75 6.25
8 7.75 8.25
10 9.75 10.25
12 11.5 12.5 Range
14 13.5 14.5
16 15.5 16.5
18 17.5 18.5 of
20 19.5 20.5
22 21.5 22.5
24 23.5 24.5
26 25.5 26.5
28 27.5 28.5
30 29.5 30.5 commercial
32 31.5 32.5
35 34.5 35.5
40 39.5 40.5
45 44.5 45.5
50 49.5 50.5
55 54.25 55.75
60 59.25 60.75
65 64.25 65.75
70 69.25 70.75 lengths
75 74.25 75.75
80 79.25 80.75
85 84.25 85.75
90 89.25 90.75
95 94.25 95.75
100 99.25 100.75
120 119.25 120.75
140 139.25 140.75
160 159.25 160.75
180 179.25 180.75
200 199.25 200.75

1) Other tolerance, for example, a11, c11, f8, as agreed between customer and supplier.

2) For nominal lengths above 200 mm, steps of 20 mm.

Requirements and referenc International Standards

Material st = Free-cutting steel,
hardness 125 to 245 HV.
Other materials as agreed between customer and supplier.
Surface Plain, i.e. pins to be supplied in natural finish, treated with a rust-preventative lubricant, unless otherwise
specified by agreement between customer and supplier.
Preferred coatings are black oxide, phosphate coatings or zinc plating with chromate conversion coating (see ISO 2081 and ISO 4520).
Other coatings as agreed between cusome and supplier.
All tolerance shall apply prior to the application of a plating or coatings.
Workmanship Pins shall be uniform in quality and free of irregularities or detrimental defects.
No burrs shall appear on any part of the pin.
Acceptability The Acceptance procedure is covered in ISO 3269.
